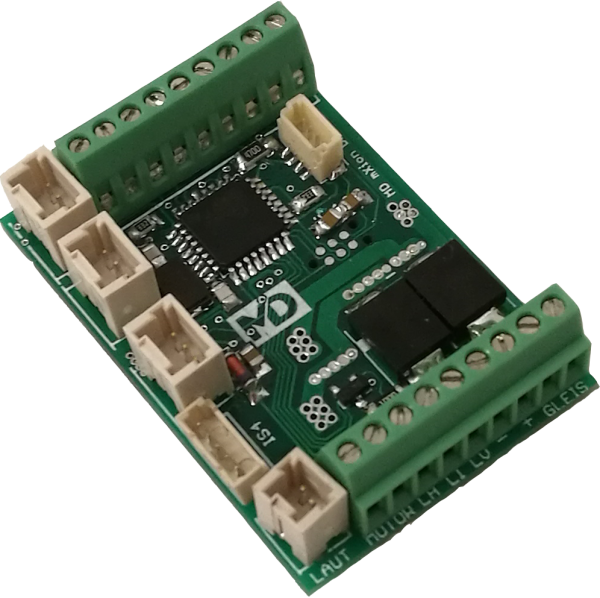

MD DRIVE-M (4A locomotive decoder, SUSI, 8 function outputs)

The MD mXion DRIVE-M is a powerful 3.5A (4A tip) locomotive decoder with a sensitive control. The DRIVE-M has 6 function outputs and 2 contact inputs. Below this, 2 contact inputs can be used for a shuttle train operation (optionally also by time control) or contact input makes it possible to connect an infrared LED to receive commands from a transmitter in the track (PZB, infra-red train control). The DRIVE-M can execute a wide range of special and imitation simulations on all function outputs (eg TV, on or off delay, neon, gas lamps, fire, dimming, etc ...). Servo functionality is also implemented. In addition to the "Swiss Mapping" and the American special functions, the DRIVE-M has a total of 19 special functions as well as special light functions.A digital and analogue load control is also implemented.The wide mapping up to F28 allows many functions. The innovative random generator can trigger various simulations (eg boiler fires) at random and there is no need for a further boiler fire module.Of course, the DRIVE-M has a SUSI interface and labeled terminals, so that easy installation and retrofitting of sound modules works without problems Switchable delay times, high beam function, Swiss mapping as well as a shunting gear as well as the "double A shunting light" are part of the scope.

With its full support of IntelliSound modules, it is possible to turn the DRIVE-M into a sound decoder in no time. The IntelliSound module can be easily powered via SUSI and the additional cable can be plugged into the decoder. Furthermore, it is possible to insert speakers, potentiometer, clock from the gearbox (or via simulation) as well as reed contacts directly into the decoder. As usual. The reed contacts can then be assigned any function key. A clock division as well as many other functions are available.

Of course, the DRIVE-M is 100% NMRA-DCC compatible



Features at a glance:

- 10239 locomotive addresses
- F0 - F28
- 3.5A (4A peak) motor stage
- 6 function outputs with 1A each
- SUSI bus connection
- IntelliSound full support with potentiometer, tact, reed
- ext. Clock and reed tripping for SUSI modules
- analogous SUSI
- digital and analog possible
- Buffer possible
- Buffer Control
- clock simulation
- Clutch winder
- Handbrake function
- Pulsed evaporator control diesel and steam (internal or external clock)
- dimmable outputs (all)
- fading
- inverse
- permanently on / off
- Servo function on 6 outputs
- 8 conditions per exit selectable (permanent, only when driving, only forward, etc ...)
- 19 light patterns per output selectable (various flashing, petroleum, sodium, neon, neon defect, US lighs, etc.)
- Swiss mapping
- US mapping
- Double-A maneuvering light function
- High beam function
- load control
- 5V regulator for servo (conditional)
- 45x24mm in size
