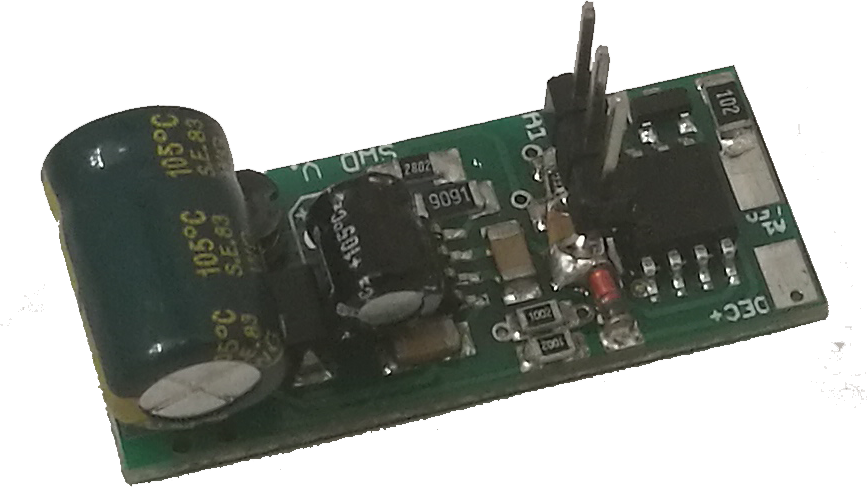

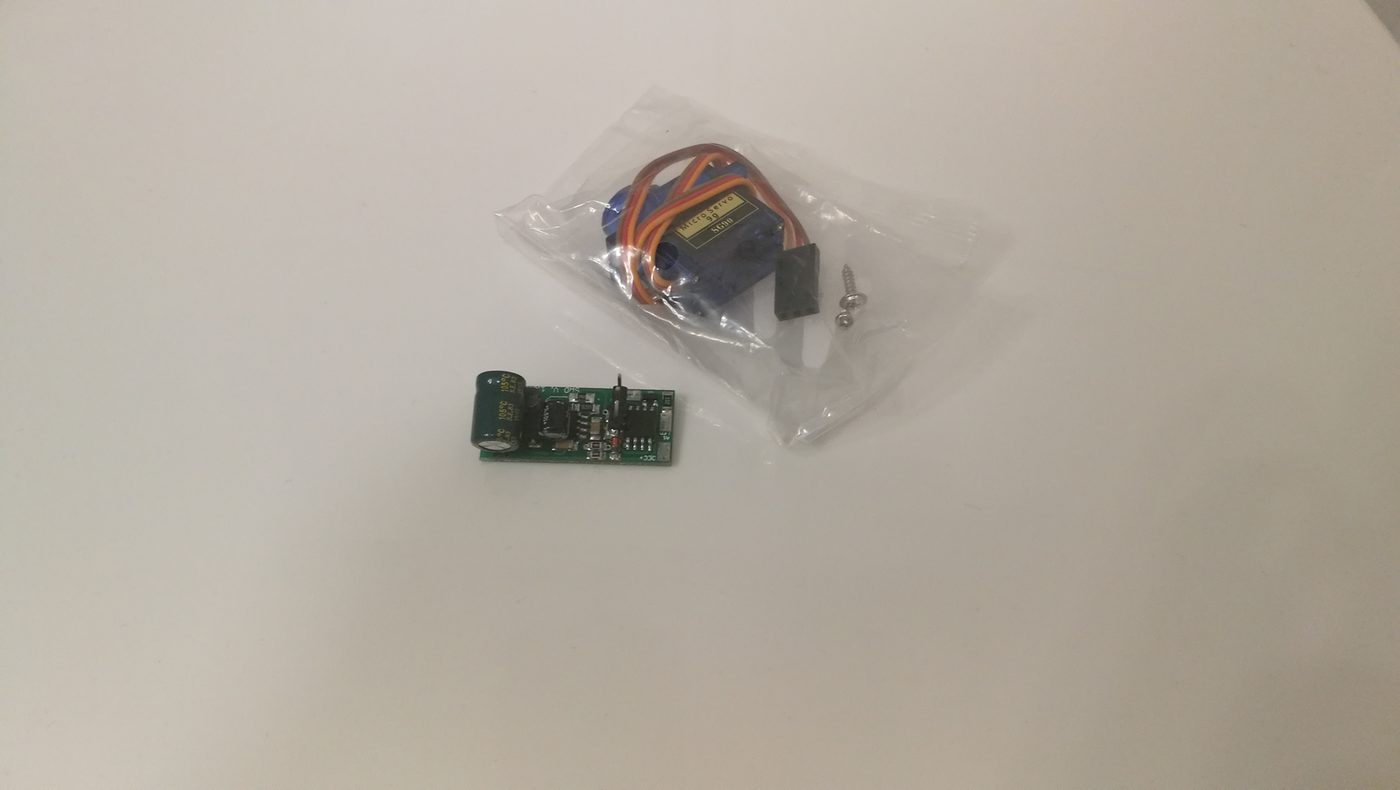

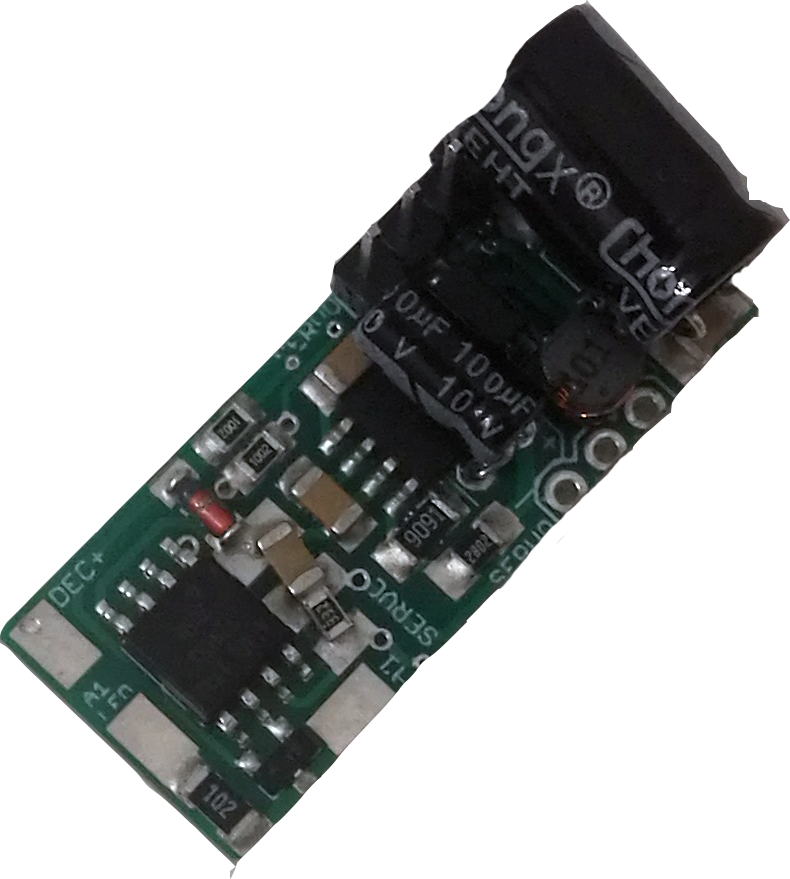

MD SWD servo decoder with servo (function key F0-F28 or switch address switchable)

This very small, powerful servo decoder with included servo and further function output is ideal for realizing movements in locos, cars or buildings. The servo can be attached directly. In addition, various settings such as speed, position and servo adjustment are possible. Furthermore, the decoder allows control by locomotive or turnout address. It can also be used ideally to realize the Heyn decouplers.

applications:


Move BELLS - adjustable swing!

Turn cranes or lift load - servo control via throttle

for mills

railroad crossings

Entkuppler

Herstückpolarisation

flash


All outputs are invertible and start positions can be set. In addition, the function output may flash during the setting process.
A resistor for LEDs is already integrated. The module supports CV, POM and register programming.


Features at a glance:

- 10239 locomotive addresses
- F0 - F28
- 2048 turnout addresses
- Outputs independently addressable
- 1 servo output
- 1 function output
- Core polarization
- Start position adjustable
- Flashing adjustable
- teetering at the endpoints
- adjustable swing
- Servo control via rotary control / speed steps possible
- dimmable outputs
- switchable by loco address (F-key)
- Switchable via turnout address (arrow keys, accessory address)
- exemplary switching of doors, gates, bells and much more
- Adjustable speed
- Control, CV read / write possible with any DCC control panel
