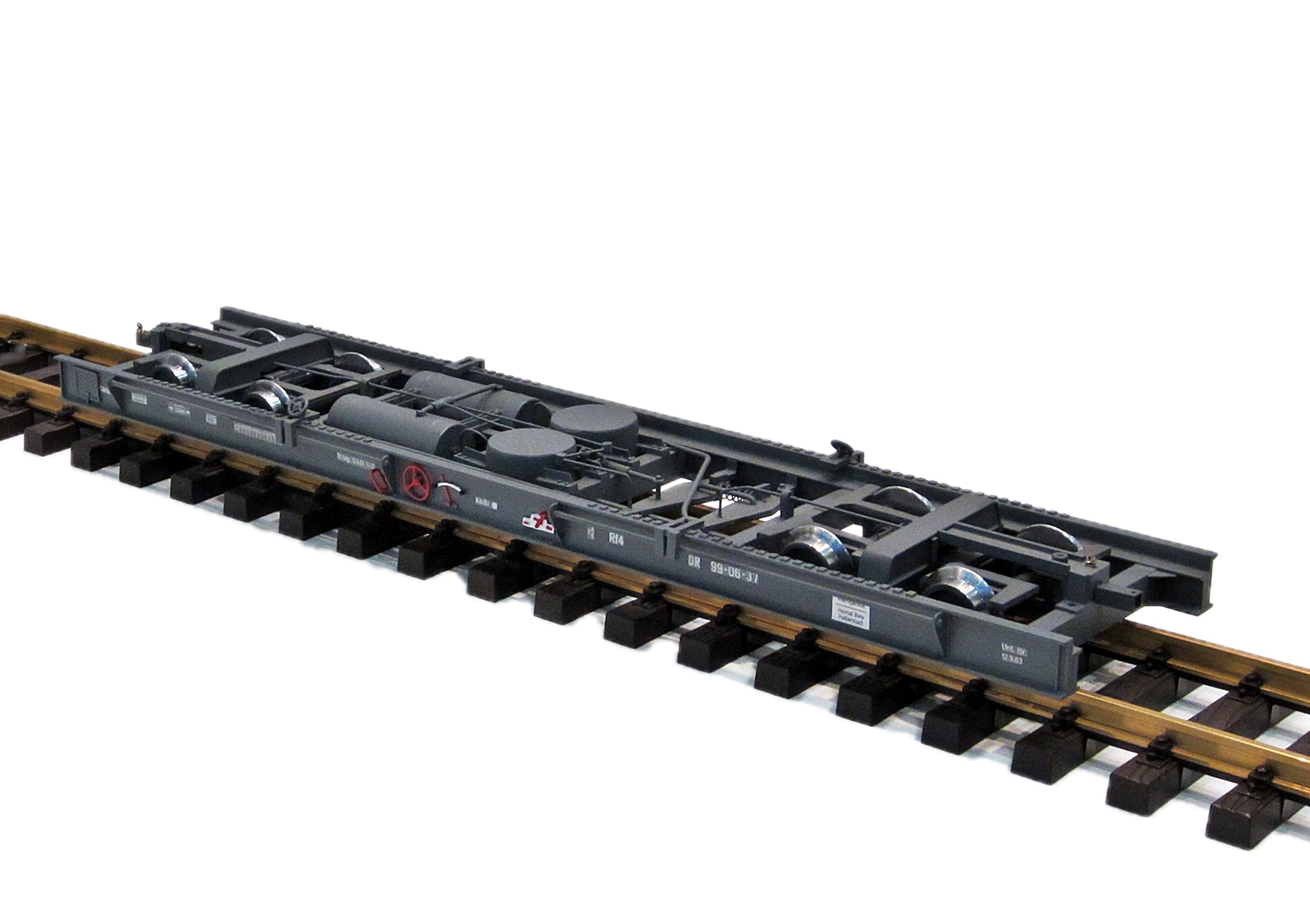

Train Line45 Trolley G Scale G for Track Gauge Scale II (64mm)

Train Line45 Gauge G for loading track gauge II track (64mm)

TL-3047200, - now available for the first time since mid-March 2017.

- Color black or gray, subject to availability,

- Saxon trolley, number e.g. DR 97-09-35

- In the near future different car numbers are possible. At the moment we deliver according to availability all under the article number TL-3047200
3047200 HSB 99-06-35


3047300 HSB 99-06-37

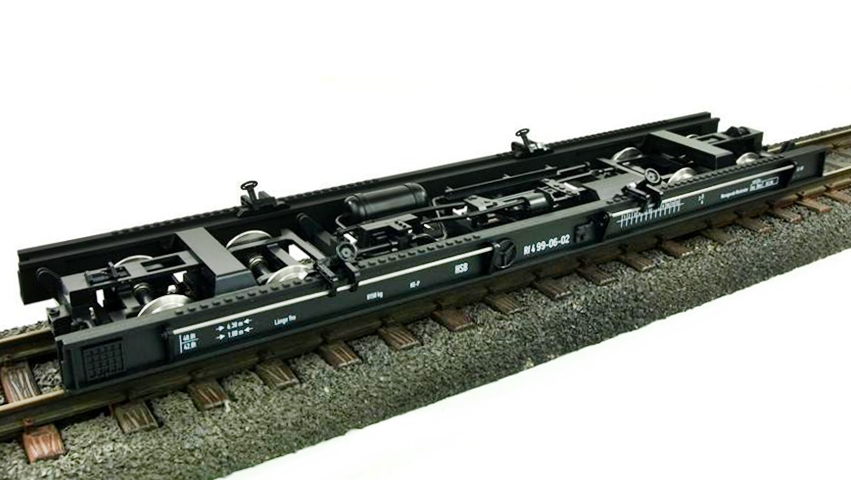

3047400 Rf 499-06-02


3047500 Rf 499-06-02



Preliminary technical data:

- Brakewheel

- Car Gauge G (Spur IIm, 45mm). Track above for Track II (64mm) carriage

- Scale 1: 22.5

- Ball bearing stainless steel wheels

- adjustable brake pads
- Length: about 400mm

- Overall width: approx. 93 mm

- Weight about 650 g

- Option: ramp with access track 64mm and continuation with 45mm on request

- Option: Zenner drawbar between trolley with funnel coupling

- Option: Boerman drawbar made of plastic for coupling to locomotives and carriages with plastic LGB coupling

- Option Zenner heavy metal drawbar for coupling to locomotives and wagons with LGB coupling

- Option: Three-way track straight with three-rail shuttle (45 / 64mm)> 64mm and three-rail diverter (45 / 64mm)> 45mm to allow for a complete ramp branch lines.

Story:

Trolleys and roller blocks are used to implement freight cars of the standard gauge on the narrow gauge. This is done to avoid reloading the goods. At HSB, trolleys and rolling blocks were in use for a long time. Worldwide, they still exist sporadically. Not all narrow gauge lines are suitable, because you have to consider the larger mass of the control track car. This also applies to the garden railway.
